Item (型號)
|
CB-2804B
|
Description (品名)
|

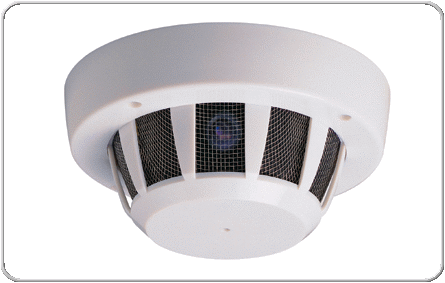

1/3"黑白偵煙器型攝影機
|
Pick up Element
(CCD影像感應)
|
Sony CCD
|
Number of Pixels
(影像圖素)
|
<EIA>510(H)×492(V)
<CCIR>512(H)×582(V)
|
Auto Electronics Shutter
(電子快門)
|
ON
|
AGC(自動增益控制)
|
ON
|
Sync. Mode (同頻模式)
|
Internal Sync.
|
Scanning System
(掃瞄系統)
|
2：1 Interlace
|
Resolution (水平解析度)
|
450 TV線
|
S/N Ratio (雜訊比)
|
大於 48dB
|
Gamma (λ)
|
0.45
|
Minimum illumination
(最低照度)
|
0.02Lux, F 1.4
|
Infrared LED(紅外線) |
Quantity(數量) |
─
─
─
|
Beam Spread (照射角度) |
Radiant Distance(有效距離) |
Horizontal Sync. Frequency
(水平同步頻率)
|
<EIA>15.734 KHz
<CCIR>15.625 KHz
|
Video Output
(訊號輸出)
|
1.0 Vp-p, 75 ohm
|
Power Source (電源)
|
DC 12V
|
Power Consumption (耗電量)
|
120mA
|
Operating Temperature
(有效溫度)
|
-10℃ to +60℃
|
IP Rating (防水係數)
|
─
|
Lens Amount (鏡頭)
|
f3.6mm固定鏡頭
|
Shutter Control (快門)
|
<EIA> 1/60~1/100,000 sec.
<CCIR> 1/50~1/100,000 sec.
|
Dimension (尺寸)
|
130 (O) ×58(D) mm
|
Net Weight (淨重)
|
0.35kg
|
Ext. Model (其他機種)
|
CC-2804BA /錄音功能
|
